Best for replacementsA-900-X LED · Trim plate included
A-900-X VacPort with LED
The retail VacPort with LED. Comes with the trim plate, screws, two wire nuts and the manual, in a VacPort box.
$36.61
VacPort® sweep ports
The VacPort range
Seven versions, one VacPort. They differ only in the LED, whether the trim plate is included, and what else comes in the package. Replacing an old port? Start with the A-900-X or A-910-X.
What does the "-X" mean? It is the color. Replace the X with E for Ebony (black) or W for White: A-900-E is a black A-900, A-900-W is a white one. The Black and White buttons pick it for you.
Which one do I need?
Pick by the job
Replacing an old sweep port
A-900-X or A-910-X
These are the only single VacPorts that come with the trim plate. The trim plate screws on through the old port's holes, is your template for the cut, and covers the old opening. Pick A-900-X for the LED, A-910-X without it.
A-900-X → A-910-X →
A-910-X No LED · Trim plate included
A-910-X VacPort, no LED
The retail VacPort without the LED. Comes with the trim plate, screws and the manual, in a VacPort box.
$36.39

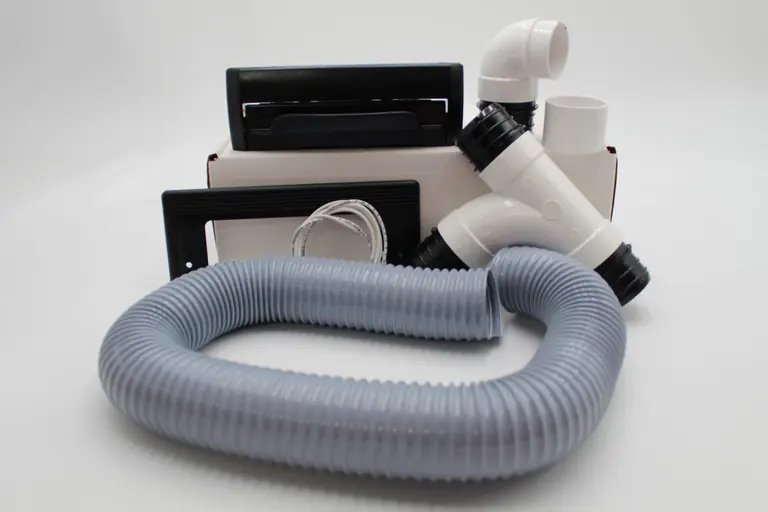

Everything in one boxA-950-X LED · Trim plate included
A-950-X VacPort Complete Install Kit
An LED VacPort with trim plate plus every fitting to tie it in: P-21 elbow, P-30 coupling, P-41 sweep tee, 3 ft of X640 hose, 4 D-900-E couplings, 6 ft of wire and 2 wire nuts.
$65.96
AF-10-X LED · Trim plate included
AF-10-X Fitting Set with VacPort
A retail A-900 LED VacPort with trim plate, plus a matching AS-40 wall inlet valve and the fittings to pipe both: P-20, P-22, two P-30, P-40 wye, 6 D-900-E couplings, 4 ft of X640 hose and 6 ft of wire.
$75.00
A-901-X LED · No trim plate
A-901-X VacPort with LED, coupling attached
Bare LED VacPort with a P-30 coupling already attached for 2 in. pipe. No trim plate, no box.
$33.10
A-902-X LED · No trim plate
A-902-X VacPort with LED, bare
Bare LED VacPort. No coupling, no trim plate, no box.
$32.82Add →
A-911-X No LED · No trim plate
A-911-X VacPort, no LED, bare
Bare VacPort without LED. No trim plate, no box. The black (-E) version ships with a P-30 coupling attached.
$25.53Add →
Prices as of September 2026. Contents from the InterVac bill of materials. Checkout is on intervacdesign.com. Orders over $199 ship free in the continental US.
Side by side
Compare the versions
| Model | LED | Trim plate | Color (-X) | Price |
|---|---|---|---|---|
| A-900-X | Yes | Yes | Black (-E) / White (-W) | $36.61 |
| A-910-X | No | Yes | Black (-E) / White (-W) | $36.39 |
| A-950-X | Yes | Yes | Black (-E) / White (-W) | $65.96 |
| AF-10-X | Yes | Yes | Black (-E) / White (-W) | $75.00 |
| A-901-X | Yes | No | Black (-E) / White (-W) | $33.10 |
| A-902-X | Yes | No | One listing: note -E or -W with your order | $32.82 |
| A-911-X | No | No | One listing: note -E or -W with your order | $25.53 |
Every VacPort: 6-1/8 in. x 2-1/2 in. opening, 24V AC or DC low-voltage switching, door on a coated steel rod held open by two magnets, no springs, PC/ABS housing, 2-year warranty. Pipe or installation hose connects to the back.
A-950-X
Adding a new port? The whole install is in one box.
Buying the port and then finding out you also need a sweep tee, an elbow, couplings and six feet of low-voltage wire is how a Saturday job turns into a Sunday job.
- LED VacPort and trim plate
- P-21 elbow, P-30 coupling, P-41 sweep tee
- 3 ft of X640 installation hose and 4 D-900-E threaded couplings
- 6 ft of 22 gauge wire and two wire nuts
- Screws and quick-reference manual
FAQ
Questions
What does the -X in the part number mean?
It is the color. -E is Ebony (black) and -W is White. An A-900-E is a black A-900-X; an A-900-W is a white one.
What is the difference between the versions?
Every InterVac VacPort uses the same A900 housing, door and magnets. The versions differ in three things: whether it has the LED, whether the trim plate comes with it, and what else is in the package. A-900-X and A-910-X are the retail ports with the trim plate. A-950-X and AF-10-X add fittings. A-901-X, A-902-X and A-911-X are bare ports with no trim plate and no box.
Which one do I need to replace an old sweep port?
The A-900-X (LED) or A-910-X (no LED). They include the trim plate, which the manual uses to replace a VacPan or Vacu-Sweep: it screws on through the old holes, you trace inside it and cut to the line, and it covers the old opening.
When does the LED come on?
When you open the door. Opening the door starts the vacuum and the LED lights the floor in front of the port. Suction and fit are the same with or without the LED.
Does the hose plug into it?
No. The pipe or installation hose connects to the back. The front is a sweep-in door. Your cleaning hose goes into an inlet valve.
Does a VacPort need bags or filters?
No. It is an inlet, not a vacuum. The bag and filters belong to your central vacuum power unit.
What is the warranty?
Two years.
Replacing a port from another brand?
The replacement guide follows the VacPort manual step by step.
